- The placement of "ear height" surround speakers is generally very similar for the various immersive formats. We tend to focus on the Dolby guidelines.

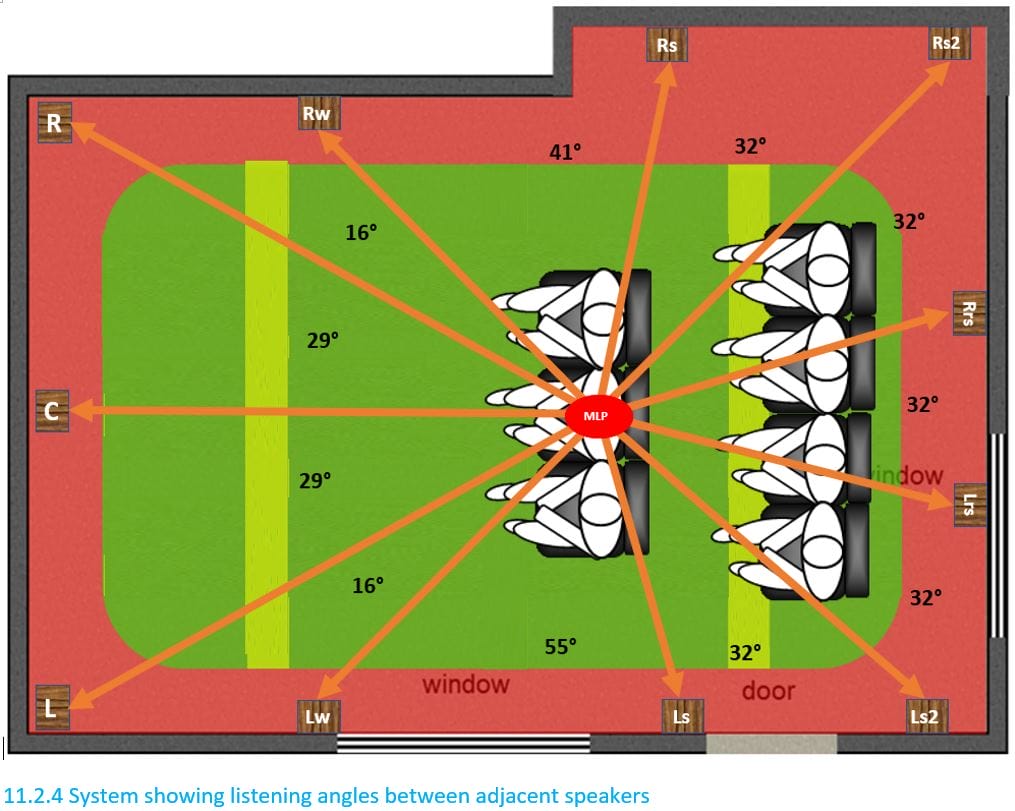

- A useful generalization is to imagine each pair of adjacent surround speakers as you do the LCRs. A narrower listening angle improves focus and envelopment; thus the development of high channel count systems.
- One issue to be considered is the possibility of an excessive gap between the speakers. A good course of action is to try to equalize the separation between the speakers.
- Equalizing the angles allows the placement to form spokes like a bicycle wheel emanating from the MLP.
- In common 7.1.4 systems the absence of the "Wide" speaker is augmented by lateral reflections filling the large gap between the front and first surround speakers.
- One should avoid placing speakers too close to listeners, and in particular immediately aside any row.
- Surround height is important as all speakers should have a clear line of sight to all listeners.
- Speakers in front of the first (or only) row should be at the same height as the LCRs which should be at the MLP ear height.

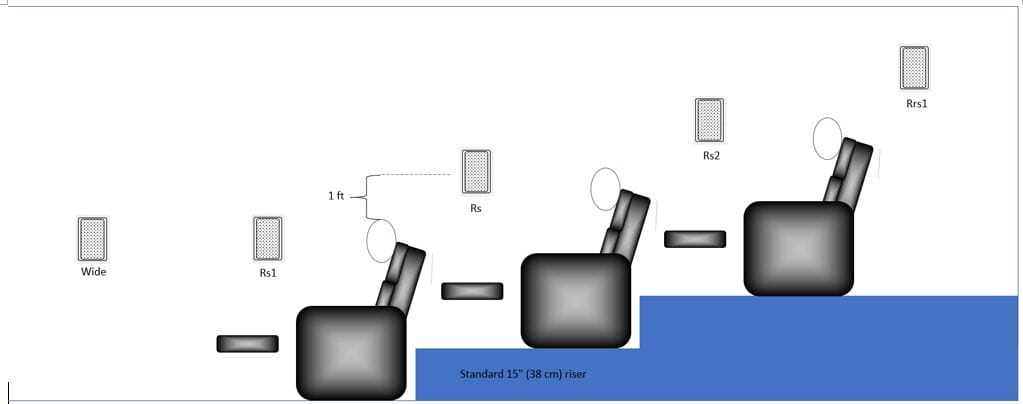

- Speakers behind a row should be elevated 12" (30 cm) above the top of the listeners head of the next forward row.
- For multi-row theaters, this progression of speaker elevation should continue as the diagram shows.
- If possible, all speakers should be pointed at the MLP to assure the maximum SPL capability of the speaker is obtained.
