HAA CinemaTools

with HAA Link

Built for the professional audio calibrator, CinemaTools with HAA Link is the Home Acoustics Alliance’s latest innovation in home cinema calibration technology.

Whether you are setting up a Dolby Atmos system or verifying speaker performance to industry standards, the HAA CinemaTools App with HAA Link (available for iPad on the Apple App Store) gives you the measurement tools you need right to you device.

Built on the framework of the original HAA Calibration Wizard as a checklist/report-based based workflow, the CinemaTools with HAA Link app has an expanded suite of precision analysis tests and a new level of process flexibility. HAA CinemaTools with HAA Link was built specifically for the professional audio calibrator.

CinemaTools is the result of years of real world testing and in depth collaboration with Studio Six Digital well known for the ground breaking AudioTools analysis package. It brings the most sophisticated tools created by Studio Six Digital and a host of brand new analysis tools developed specifically for professional immersive audio systems.

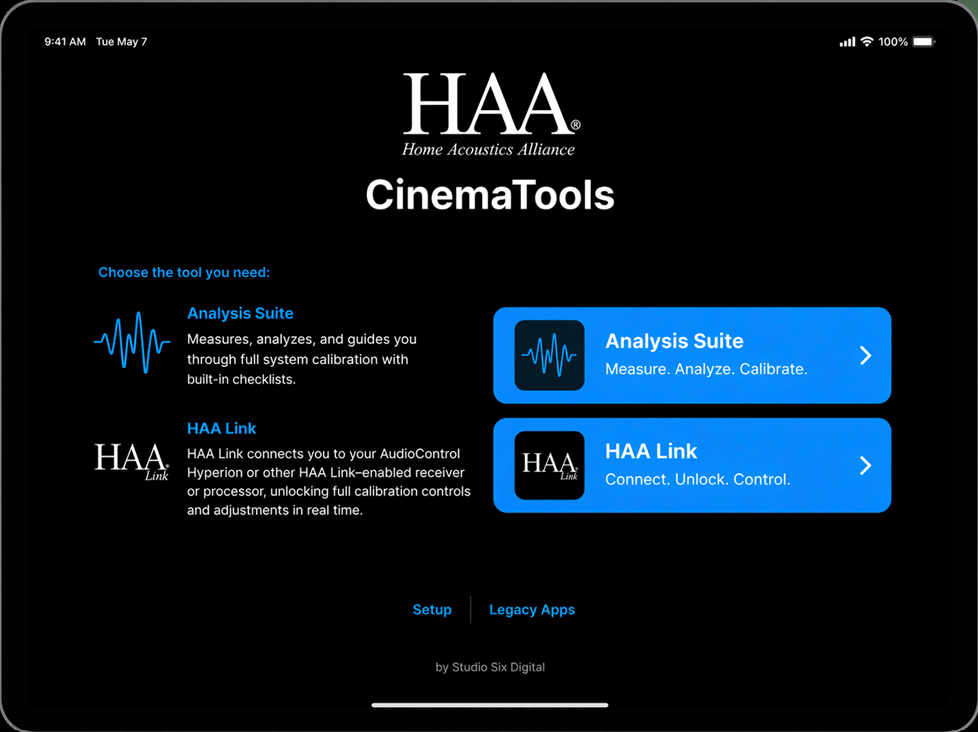

Download HAA CinemaTools

HAA As its name implies, HAA CinemaTools with HAA Link was built from the ground up as the home of the new HAA Link real-time calibration protocol. HAA Link is designed to be integrated into HAA Certified AVRs and pre-pro units, and. It is currently available in the Audio Control Hyperion advanced processor. Calibrators can access the protocol by purchasing an HAA Link unlock for each unit.

The powerful Analysis Suite is available as an in-app purchase for $149. The true power of CinemaTools with HAA Link lies in the unique workflow where calibration adjustments via HAA Link are monitored in real-time using the Analysis Suite. The Analysis Suite can also be used as a powerful tool for any calibration, even without HAA Link.

Analysis Suite

The Analysis Suite can also be used as a powerful tool for any calibration.

Design Review

The Analysis Suite main page is the Design Review. This full featured drawing allows the calibrator to see critical layout relationships we call the Acoustical Framework. Each element of the framework is entered, and at a glance, the current status plus opportunities for improvement are clear. Click on the image for a better view.

Interactive Room View
The dynamic room plan serves as the central workspace:
Tap any element (speaker, screen, seating row) to access its parameter editor
Drag elements to reposition with live angle and distance recalculation
Display Options toggle overlays: speaker angles, coverage patterns, room modes, SMPTE guidelines
All changes reflect immediately across measurement and design tools
In HAA CinemaTools, all of the calibration tools are instantly accessible from a menu on the main screen. Setup the screen overlays as needed, and then bring up any of the calibration tools.

Screen & Seating Design
The Screen Review module provides precise control over projection screen placement and seating geometry. Configure image width, height, and aspect ratio (1.78:1, 2.35:1, 2.37:1, 2.39:1) with real-time visualization of SMPTE RP 197 viewing distance guidelines—showing 2×, 3×, and 4× image height boundaries directly on the room plan.

Screen Parameters:
Image bottom height from floor
Horizontal centering offset
Wall distance and screen frame dimensions
Calculated horizontal field of view (HFV) displayed at seating position

Seating Configuration:
Multi-row support with independent row positioning
Riser height per row
Viewer distance calculation from screen
Seating position modes: Upright, Movie, and Recline (adjusts ear height for angle calculations)
MLP (Main Listening Position) row designation
Toggle between Top View and Side View to verify both horizontal coverage and vertical sight lines.

Loudspeaker Layout & Coverage Analysis
The LCR Angles module visualizes speaker placement geometry with calculated angles to the listening position. Position front LCR speakers by separation distance and offset from front wall, with real-time angle calculation to each seat.
LCR Configuration:
Left/Right separation distance
LCR distance from front wall
Calculated LR angle to MLP (with reference presets: 45°, 53°, 60°)
Lock controls to constrain angles, LCR positions, or row positions during adjustments
Surround Speaker Angles: The room view displays calculated angles for all speaker positions relative to the listening position:
Side surrounds (typically ±70° to ±110°
Rear surrounds (±135° to ±150°)
Height/overhead channels with vertical angle notation (e.g., 35°V, 65°V)
Speaker icons are interactive—tap to edit parameters or drag to reposition. The coverage overlay shows the acoustic coverage triangle from LCR to the listening area, helping identify potential imaging issues before measurement.

Subwoofer Positioning & Room Mode Visualization
The Position Review module addresses low-frequency optimization with interactive subwoofer placement and room mode visualization.

Subwoofer Parameters:
X and Y distance from room corner
Multiple subwoofer support
Visual representation of subwoofer location on room plan

Mode Map Display: The room view overlays axial room modes as colored bands—both lateral (wall-to-wall) and longitudinal (front-to-back) modes are shown, allowing you to identify nodal and anti-nodal regions. Position subwoofers and seating to minimize the impact of modal peaks and nulls at the listening position.
Room dimensions are displayed (e.g., 12.0 × 14.0 ft) with mode calculations based on actual room geometry.

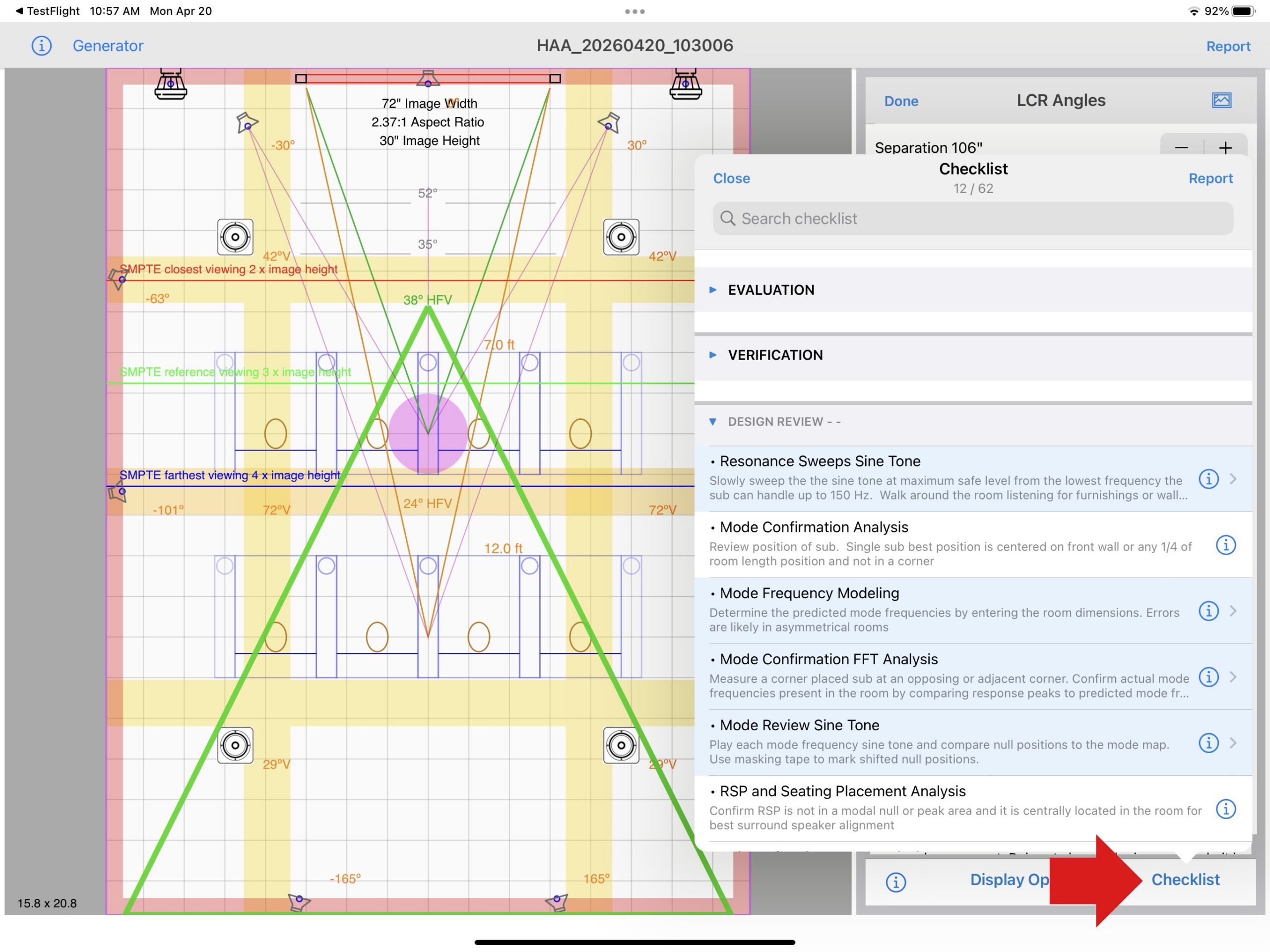

Workflow Checklist

The calibration process is guided by one of several job specific checklist choices. Each checklist item is supported by help links. When an analysis tool is required, it opens automatically ready for the job. Click on the image for a better view.

Audio Calibration can be a complex undertaking and many integrators only calibrate from time to time. The checklist workflow simplifies the process by guiding the calibration item by item.

Automatic Analysis Tools

What tool and in what configuration is used each measurement? In HAA CinemaTools, when a measurement or calibration adjustment is required, the right tool appears in the correct configuration and with the right test tones at hand on the same screen.

HAA TurboCal and PowerCal Checklists

Pre-built workflows that maximize your time and effort. The TurboCal is your everyday checklist. It’s designed to allow a calibration in under two hours, perfect for the common AVR setups for smaller systems. PowerCal is designed for the bigger jobs that will take a few or sometimes many hours. It’s the best choice for a high end immersive system especially if you are calibrating an HAA Link certified product.

Custom Personal Checklists

Create your own workflow with a customized checklist. New checklists can be shared with others. Find your best solution for specific tasks or AVRs. Add reminders for your integrators. Click on the image for a better view.

HAA Calibration Checklist

Included with the app are the classic HAA PowerCal and TurboCal checklists used during HAA Training. Additionally, the CEDIA Workflow for the RP32 room validation is included.

Custom Checklists

Add team reminders as a checklist item (Check Crestron integration, Lock Rack Door, Break down Boxes or whatever)
Delete Checklist items that are not needed for the service required
Move checklist items to a different phase

Share or Add Shared Checklists

The community of HAA Calibrators and Designers can be a resource to share new ideas and find new ideas. The checklist files can be easily emailed and added to the app

Precision FFT Analysis

Built-in Test Tone Control

State-of-the-art acoustical analysis with the added benefit of fingertip test tone generation. Click on image for a better view.

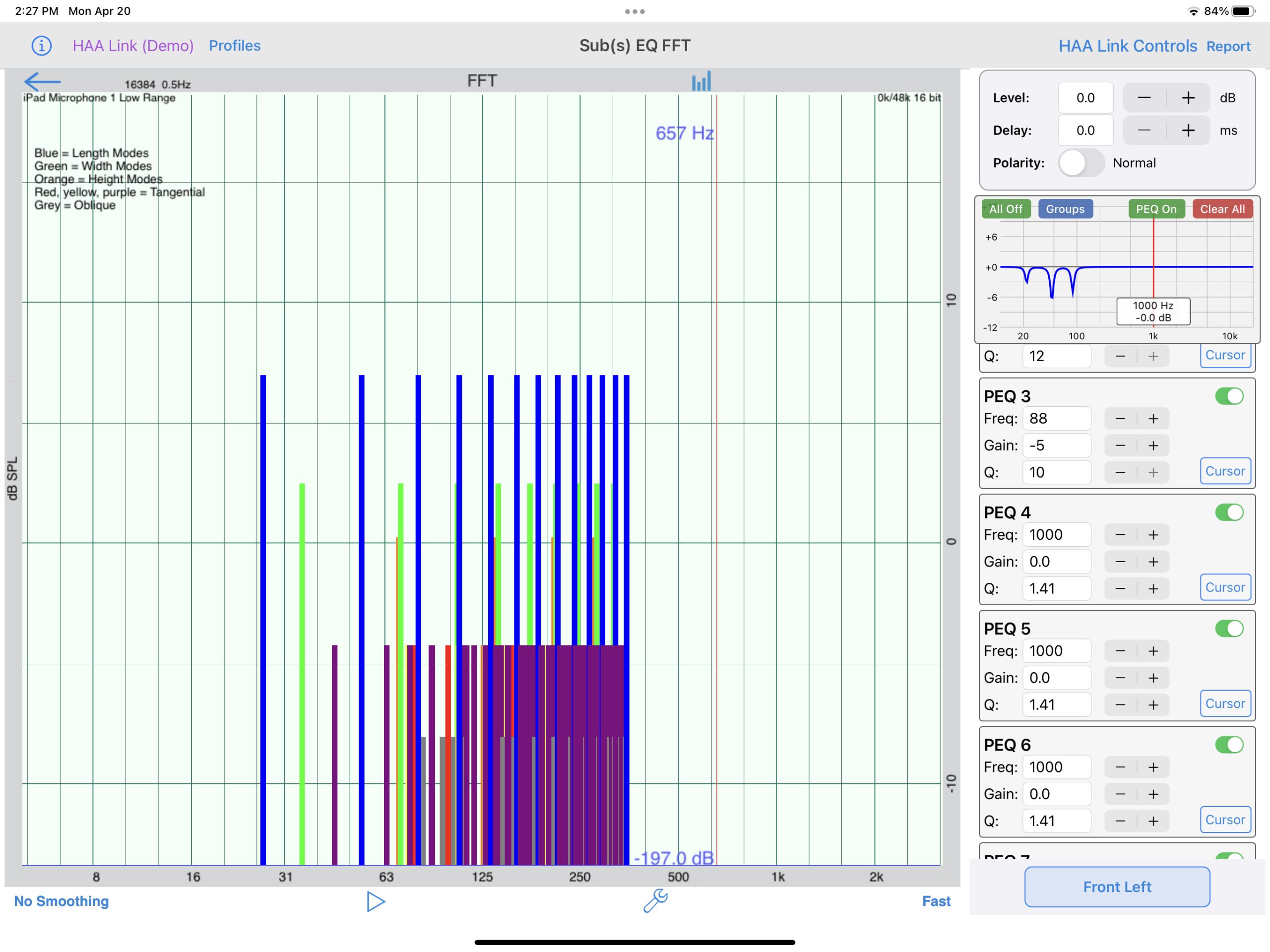

FFT Analyzer
High-resolution Fast Fourier Transform analysis for detailed frequency response measurement. The FFT provides the precision needed for identifying room modes, speaker response anomalies, and verifying filter adjustments. Adjustable resolution single, 1/3, 1/6, 1/12, 1/24, 1/48 octave.
Features:
Configurable FFT size for resolution/response time tradeoff
Multiple window functions (Hanning, Hamming, Blackman-Harris, Flat Top)
Peak hold and averaging modes for stable measurements
Linear and logarithmic frequency scaling
Cursor readout for precise frequency and amplitude identification
When connected to Hyperion, the channel’s filter response curve overlays directly on the measurement, updating in real-time as EQ parameters are adjusted
Applications:
Subwoofer frequency response and room mode identification
Speaker/room interaction analysis
Verification of parametric EQ filter settings
Crossover alignment between drivers and channels

Integrated Test Tones

The image shows the handy control panel for operating the required test tones needed for measurements. Switching speakers combining speakers easily completed. The controls can operate the Studio Six Digital SurroundPod, Surround Generator (Apple TV), and the built in test tones found in any HAA Certified AVR or Pre-Pro.

HAA Link Bonus

When HAA CinemaTools is linked to an HAA Link equipped AVR or Pre-Pro, equalization becomes a real pleasure. All calibration controls that can have a big impact on frequency response can be measured and adjusted from the same window, See HAA Link Integration below.

Each Analysis Tool appears with the touch of a checklist item, ready for use.

Precision SPL Matching

This proprietary SPL matching tool matches each speaker to your reference with ease and provides a host of Pro features. With HAA Link equipped devices, quickly match all speakers within a tenth of a decibel. Click on image for a better view.

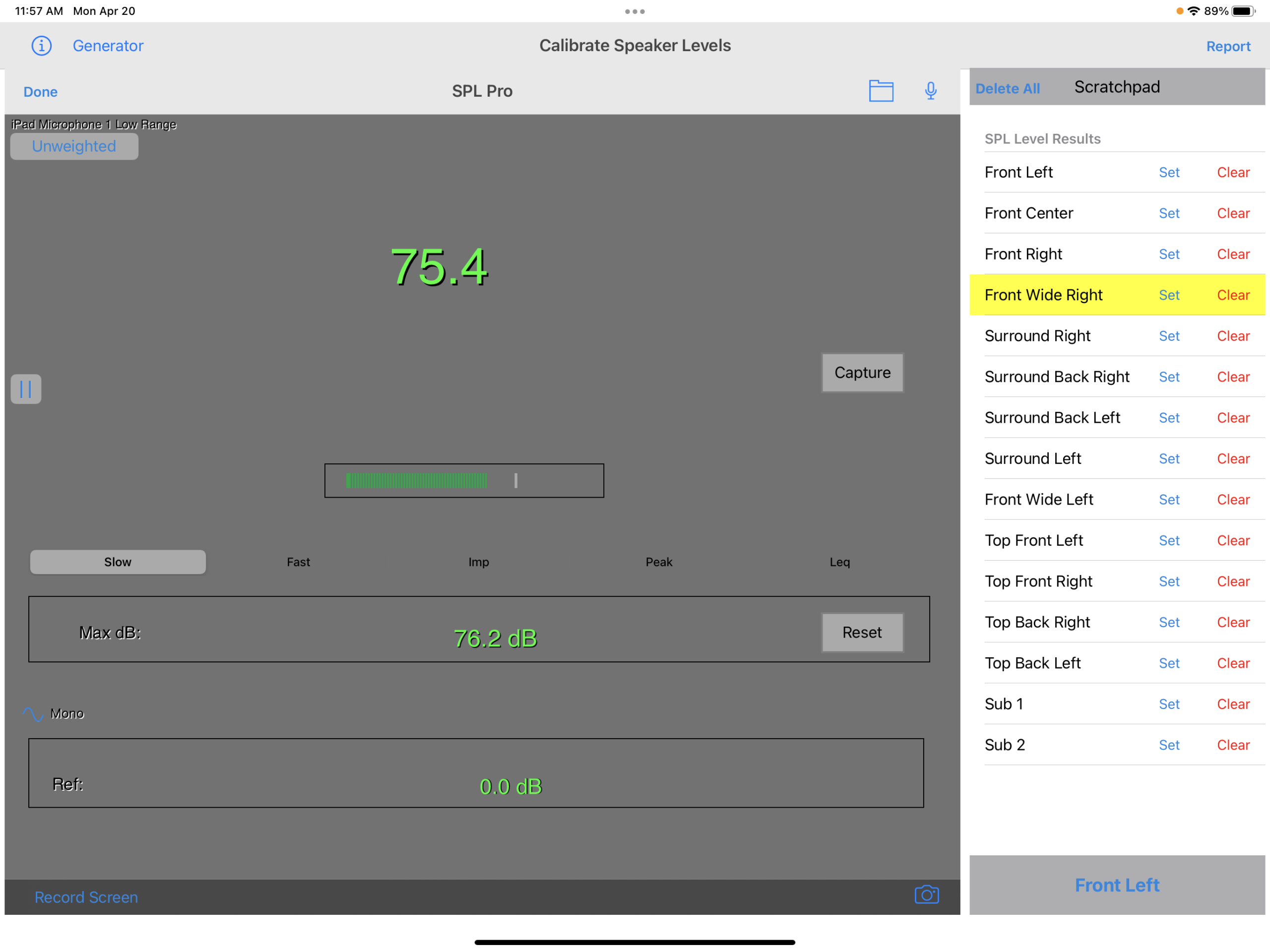

CinemaTools SPL Meter

SPL Meter is a professional-grade sound level meter, also known as a decibel or dB meter, for precise alignment of speaker balancing and other uses.
Modeled after a traditional analog SPL meter, we have faithfully reproduced all the characteristics and qualities found in those meters, including the ballistics, ranges, filters, and decay rates.

HAA Link Bonus

When used with an HAA Link equipped product the process of speaker matching becomes even more precise. Simply adjust the left speaker to the desired level then set its level as the reference. You can then move through the entire constellation of speakers quickly aligning their level within .1 dB. Remarkable speed and accuracy for amazing sound.

Precision Time Alignment

No more tape measures for HAA Link equipped devices. The full sound path is analyzed to yield phase alignment within the limit of your AVR using LARSA. Experience an audible improvement over the typical process and super fast. Click on image for a better view.

LARSA Delay Tester

Precision time-domain measurement for loudspeaker delay alignment. Accurate delay settings ensure proper imaging, coherent summation at crossover frequencies, and correct spatial presentation in surround systems.

Features:
Impulse response-based delay measurement
Sub-millisecond resolution
Distance calculation from measured delay (with speed of sound compensation)
Reference channel selection for relative delay measurement
Compatible with full-range speakers and subwoofers

Applications:
Setting surround channel delays relative to the front stage
Verifying processor delay settings match acoustic reality
Aligning drivers in multi-way active speaker systems
Measuring and compensating for processing latency in digital systems

HAA Link Bonus

When using an HAA Link equipped pre-pro or AVR, the technical limit for phase alignment of .02 inches is possible. The user simply tests each speaker to learn the time error and then HAA CinemaTools automatically corrects it. Amazing precision and speed.

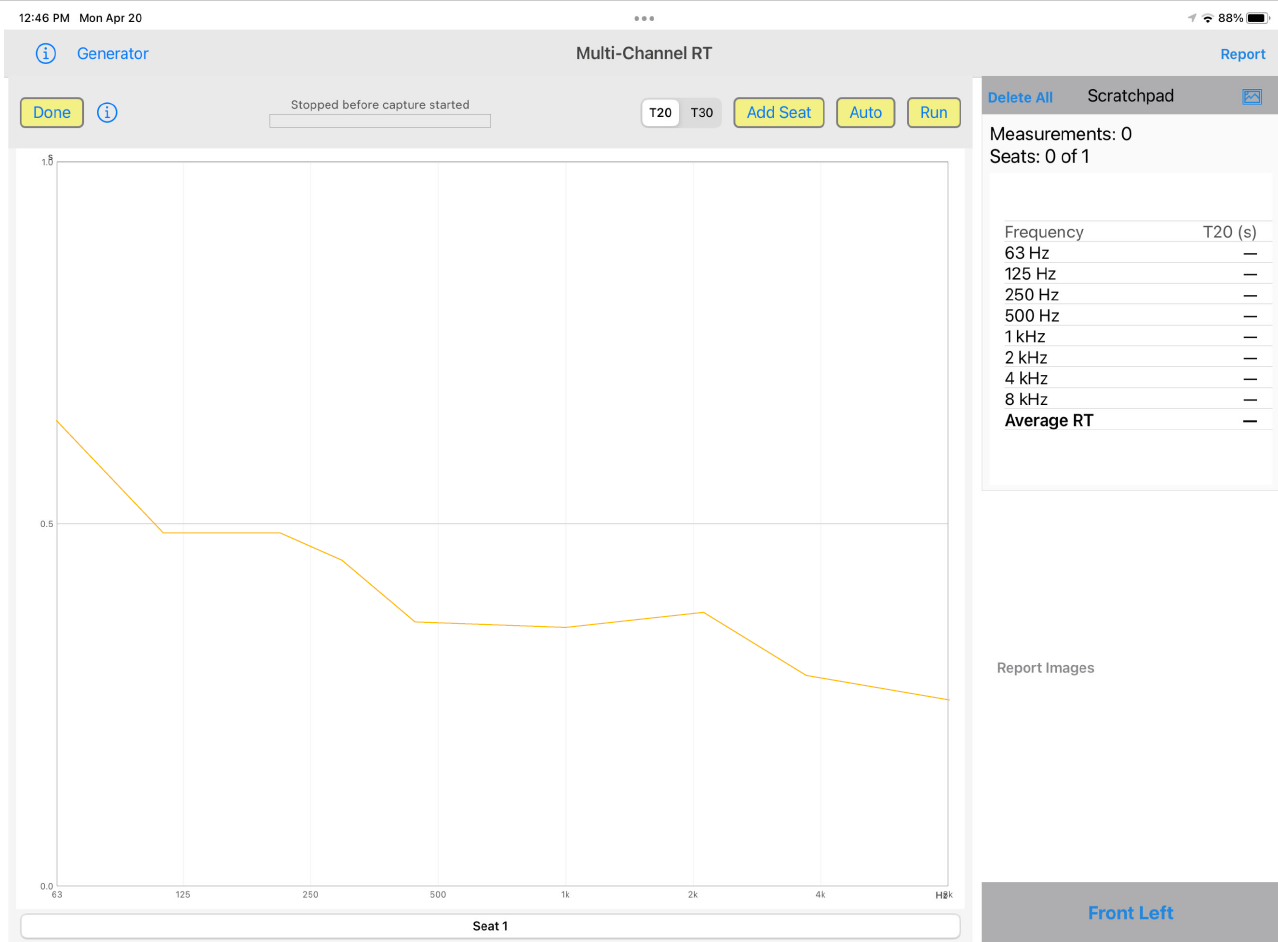

8 Octave RT60 Analysis

Now you can look at the entire audio spectrum’s reverberation decay. This is a toll specified by CEDIA RP32 for system validation. Fast and easy to complete your calibration report. Click on image for a better view.

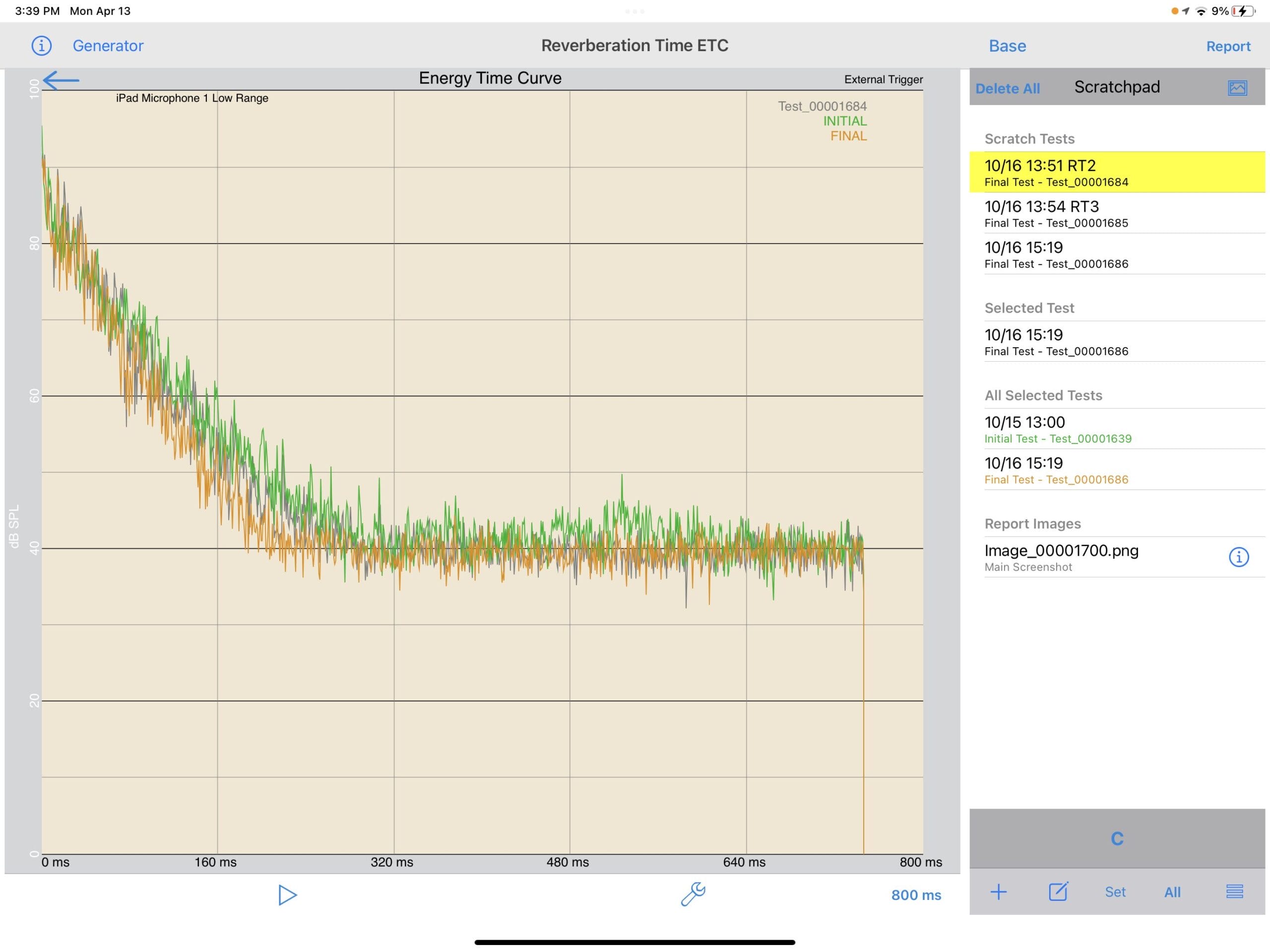

Reverberation Time (RT) Analysis

HAA CinemaTools includes a remarkable tool for measuring reverberation time (RT60) for each octave with a single measurement. While RT is technically not a calibratable parameter of a room, this analysis can be instrumental in defining the acoustical environment. This data can be used to make recommendations for refining the acoustical treatment strategy and is essential information if consulting with an acoustician.

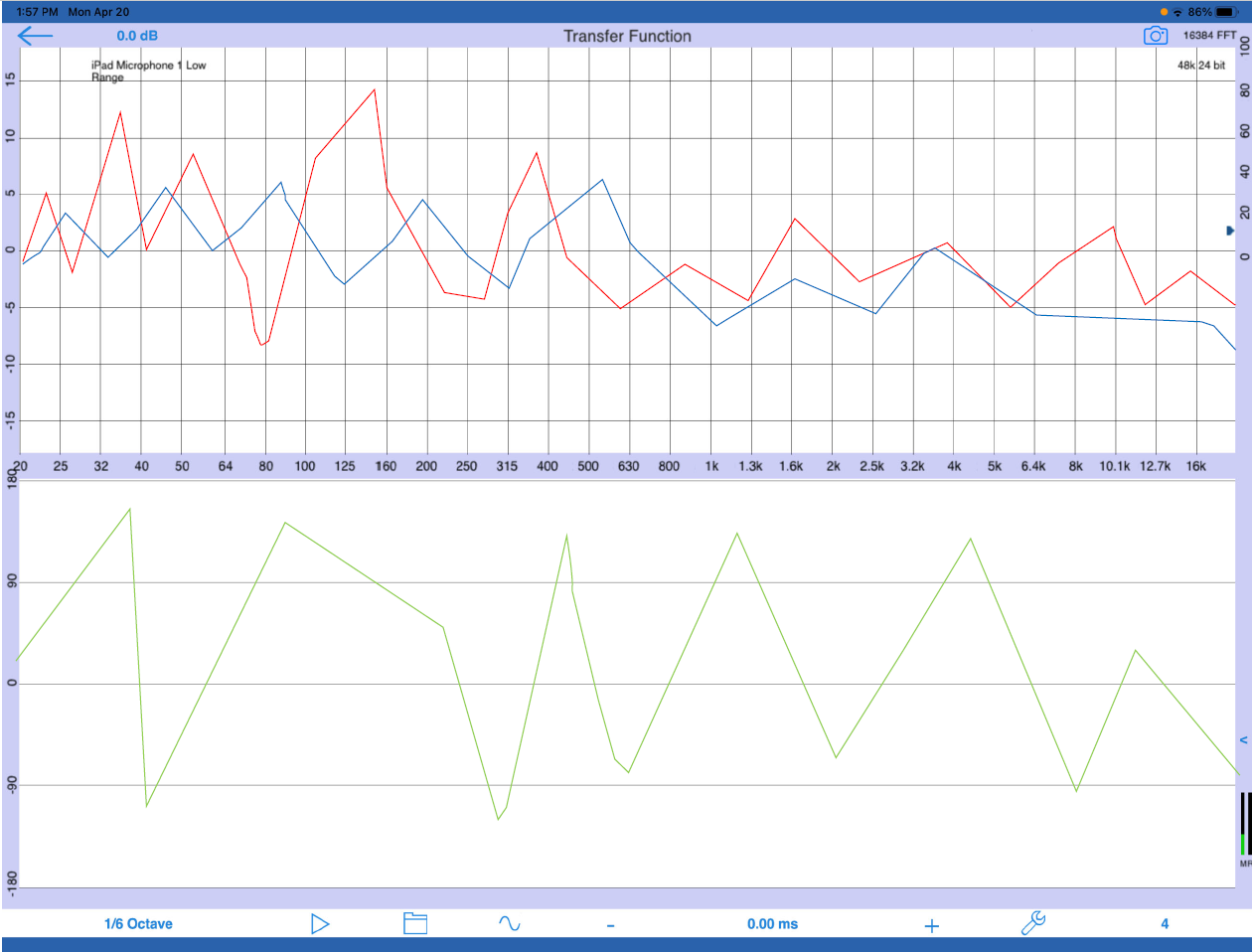

Transfer Function (Phase Response)

Get magnitude, phase, coherence plots for precision phase alignment and it’s real-time with any program material. An advanced Pro feature that now works on every channel. Click on image for a better view.

Transfer Function

An audio transfer function is a mathematical, dual-channel measurement (comparing input and output) that maps how an audio system, device, or room changes a sound signal, specifically defining the frequency, phase, and amplitude relationship between them.

Magnitude Graph
The magnitude graph is used to show the difference between the reference signal and the test signal. Typically, the reference signal is pink noise, although you can also use mono program material (music) and still get good results.
The graph auto-centers around the 0 dB axis, so it’s easy to see how the test signal differs from the reference signal.

Phase Graph
The phase graph shows the relative phase of the signal, and is useful for setting crossover points.

Coherence Graph
The coherence graph is used as a measure of the reliability of a set of averaged transfer function measurements. 100% would mean that you are seeing highly correlated graphs, and thus the information on the magnitude and phase graphs would be accurate.

Coherence Blanking
It may be useful to only display transfer function plot data when the coherence is above a certain threshold. This helps you know that the information being shown is reliable. To do this, you can set a coherence blanking threshold in percent, on the setup screen.
When the blanking threshold is greater than 0, plot data will only be shown that has a corresponding coherence greater than the threshold.

Ambient Noise (NC,NCB)

NCB is an important element in sound quality. The CinemaTools NCB test is quick and easy to use. Click on image for a better view.

Launching the Ambient Noise Test displays an RTA histogram plot showing the SPL of each octave.
The Noise Criteria Balanced Curves are shown to indicate the “NCB” of each octave.
The test should be conducted with all equipment on and the volume turned down on the AVR.
Internal noise producers such as the HVAC system, rack fans, and projector should be on.
Any unwanted noise from the speakers such as hum or hiss should be noted; perhaps there’s a solution.
External noise should be noted as well such as traffic noise and sounds from other rooms but this requires a more in depth solution.
A good approach is to pause the test and make sure no one speaks or moves about. Then hit play to resume and finalize.
You can insert a screen shot of this graph into the report.

Energy Time Analysis (ETC)

The Analysis Suite includes a full featured Energy Time analysis for estimating reverberation time for more specific frequency bands and uses. Click on image for a better view.

ETC (Energy Time Curve)
The Energy Time Curve displays acoustic energy arrival over time, revealing the impulse response characteristics of the room and speaker system. ETC analysis is essential for understanding reflection patterns and optimizing speaker placement.
Features:
Logarithmic energy display (dB) versus time
Adjustable time window and resolution
Direct sound and reflection identification
Cursor readout with time and level values
Integration time markers for early/late energy analysis
Applications:
Identifying first reflections and their arrival times
Evaluating acoustic treatment effectiveness
Speaker placement optimization to minimize early reflections
Determining appropriate delay settings for surround channels
Room acoustic analysis: RT60 estimation, reflection density
Subwoofer time alignment verification

Automatic Calibration Report

No more transferring screen shots to a report, HAA CinemaTools allows you to build the report as you calibrate. You can add any analysis plots, comments, listening impressions, pictures and more into a pdf report. The report is ready to email to the client when you’re done calibrating. Click on image for a better view.

Calibration Report

Any Pro Calibrator will tell you, the most frustrating part of calibrating is combining the series of measurement screen shots and data collected into a logical report. Many calibrators use multiple instruments which are often not collected on the same device. HAA CinemaTools allows the you to use one device with all precision measurements in one place on one device. You can make any number of measurements through your analysis process, then select the final measurements adding them to the report with the tap of a button.

Professional Branding

Every report has your name, company, contact info, and even your logo displayed. Consider the value of the report in marketing; every client will definitely show your report to their friends. The report adds value to your work and demonstrates true professionalism.

Custom Content

You control what is seen and by creating a custom checklist you can customize the report content as well. Add pictures, recommendations, extra measurements, or create a simple report with just the essential data.

When you are finished calibrating, the report is finished and can be emailed as a pdf. Super fast.

HAA Link Integration

HAA CinemaTools is a powerful calibration tool with any system, but it’s power is super-charged when you use an HAA Certified AVR or Pre-Pro. Our first certified product is the Audio Control Hyperion.

HAA Link

When connected to an HAA Certified AVR or Pre-Pro (hardware or demo mode), the Link Controls button provides real-time access to channel parameters without leaving the measurement view:
– Parametric EQ: up to 16 bands per channel with adjustable frequency, gain, and Q
– Channel level trim
– Channel delay with distance or millisecond entry
– Polarity control
– Filter curves drawn directly on FFT and RTA plots
– Live curve updates as parameters are adjusted
– Seamless channel switching with automatic parameter refresh
– Real-time implementation of adjustments while you are watching the result
This tight integration between measurement and control eliminates the traditional back-and-forth between analyzer and processor interface, dramatically accelerating the calibration workflow.

And much more

Waterfall Plots

Polarity Checker

Polarity Checker

Verifies absolute and relative polarity of loudspeakers and individual drivers. Correct polarity is critical for proper stereo imaging, surround envelopment, and bass response—especially in systems with multiple subwoofers.
Features:
Clear positive/negative polarity indication
Confidence meter showing measurement reliability
Works with the built-in impulse stimulus or external test signals
Suitable for full-range speakers, subwoofers, and individual drivers
Applications:
Verifying speaker wiring before calibration begins
Checking subwoofer polarity relative to main speakers
Identifying reversed drivers in multi-way loudspeakers
Confirming polarity consistency across all channels in a surround system
Troubleshooting cancellation issues at crossover frequencies

Impedance Sweep

Impedance Sweep

An important diagnostic tool used for loudspeaker impedance testing. The Impedance Sweep creates a plot of impedance over a frequency range. This test requires the Studio Six Digital iAudioInterface2 and a special test cable. Both are part of the HAA Calibration kit or can be purchase separately.

This tool is valuable to determine proper speaker and even cable function. Some calibrators do this test as a required pre-installation “lemon test”, but it’s always handy when trouble-shooting anomalies during a calibration.

Speaker Distortion Analysis

Scratch Pad

Scratch Pad

Scratchpad is a powerful way to compare multiple plots and select the best one.
You add plots to the Scratchpad when you touch the “+” control. You can see the time/stamp or the custom label you created in the Scratch Tests area.
You can take multiple tests/measurements, compare them, then select the best by viewing it and selecting the “Set” control at the bottom.
The current selected test is shown under the “Selected Test” label.
You can pick any test/plot and compare it to the selected test.
The “All” control is useful in tests where the end result is to overlay multiple plots such as the Nearfield checklist item. Selecting it again clears the plot screen.
You can delete any plot using the trash can icon or you can delete all tests/plots using the “Delete All” control on the top.
The edit icon allows you to change any plots caption.
